THE ADDITIVE MANUFACTURING SOLUTION

metal wire and metal powder 3D printers

(please, scroll down to end)

​​

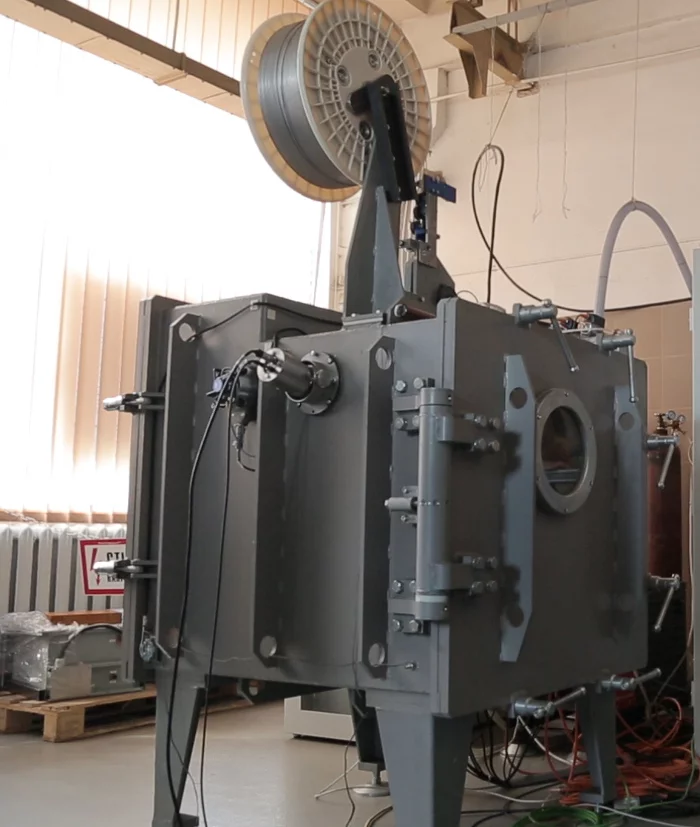

 Meet the хВеаm 3D Metal Printing -

exclusive additive manufacturing technology!

Technological opportunities and commercial advantages:

• ​Unique hollow conical electron beam and coaxial supply of the deposited material

• Affordable feedstock material

• High productivity

• Good accuracy and high quality of 3D printed parts

• Excellent controllability of metal structure formation - high quality of 3D printed material

• Standard industrial wire up to 3.2 mm of any metal

• Up to 2000 cm3/hour

• Thin wall thickness (from 1.5 mm), small surface roughness (± 1 mm)

• Makes additive manufacturing affordable for broad industrial application

• Easy and safe operation;

• Easy integration to existing manufacturing workshops and production chains;

• The lowest in metal wire 3D printing operating cost (<0.2 Euro per cm3).

METAL PRINTERS

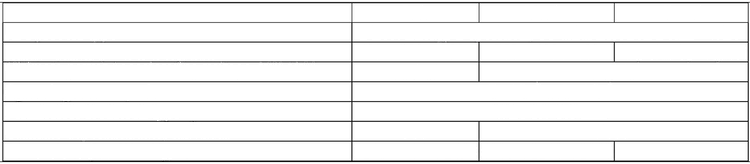

Available configurations:

METAL POWDER 3D PRINTERS

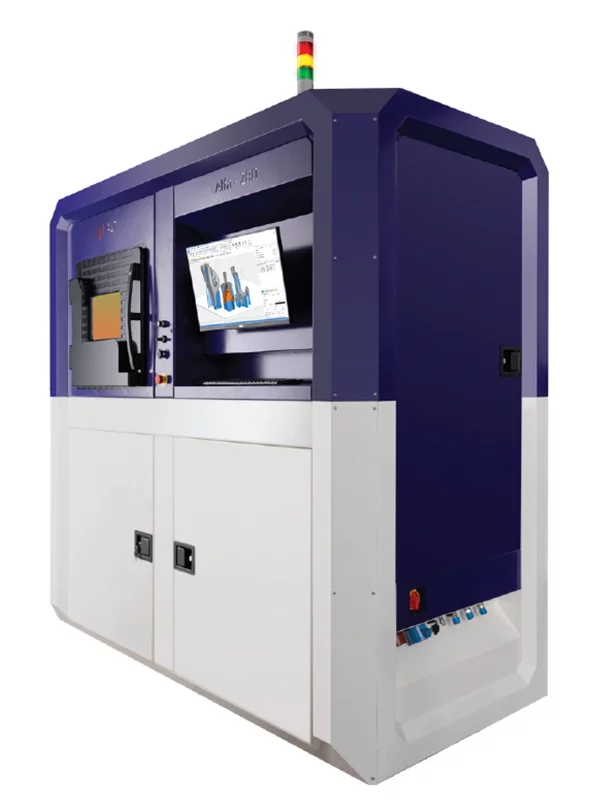

 Meet the Alfa 3D Metal powder Printing -

advanced additive manufacturing technology!

Technological opportunities and commercial advantages:

Powder metal printing machines series Alfa – one of the most popular models owing to sufficiently large operating field, which enables  manufacture of details with maximum dimensions up to 400x400x500 mm. The Machine allows to manufacture high quality details with complex geometry with different metal alloys without usage of unique equipment and long technological processes. This model is convenient to use for mass manufacturing and for prototyping with high requirements to chemical and physical properties of a material.

The Maсhine is supplied with a full kit of auxiliary equipment for continuous work including powder vacuum transportation system, raw materials processing for reusing, preparation working area station.

Under request machine can be completed with additional laser and second scanning system with high-speed systems of dynamic focusing of a laser beam.

​

•     3D Optics Configuration single/quadro

•     Laser system 1 х 300 W (cw) - 4×500 W (cw)

•     Variable Layer Thickness 20-200 microns

•     Beam Focus Diameter 45-120 microns

•     Scan Speed 10 m/c, 20 m/c

•     Positioning accuracy 0,15-0.4 microns

•     Average Inert Gas Consumption in Process up to 7 l/min

•     Average Inert Gas Consumption Purging up to 70 l/min

•     Voltage Input 220V-380V

•     Power Input 4-11 kW

•     Machine dimensions (WxLxH) from 1100х760х2000mm to 3200х1000х2300 mm

•     Machine weight 480-2250 kg

•     The lowest in metal powder 3D printing operating cost (<0.21 Euro per cm3).

Exclusive for R&D, Friendly for Industry!
